$46.13

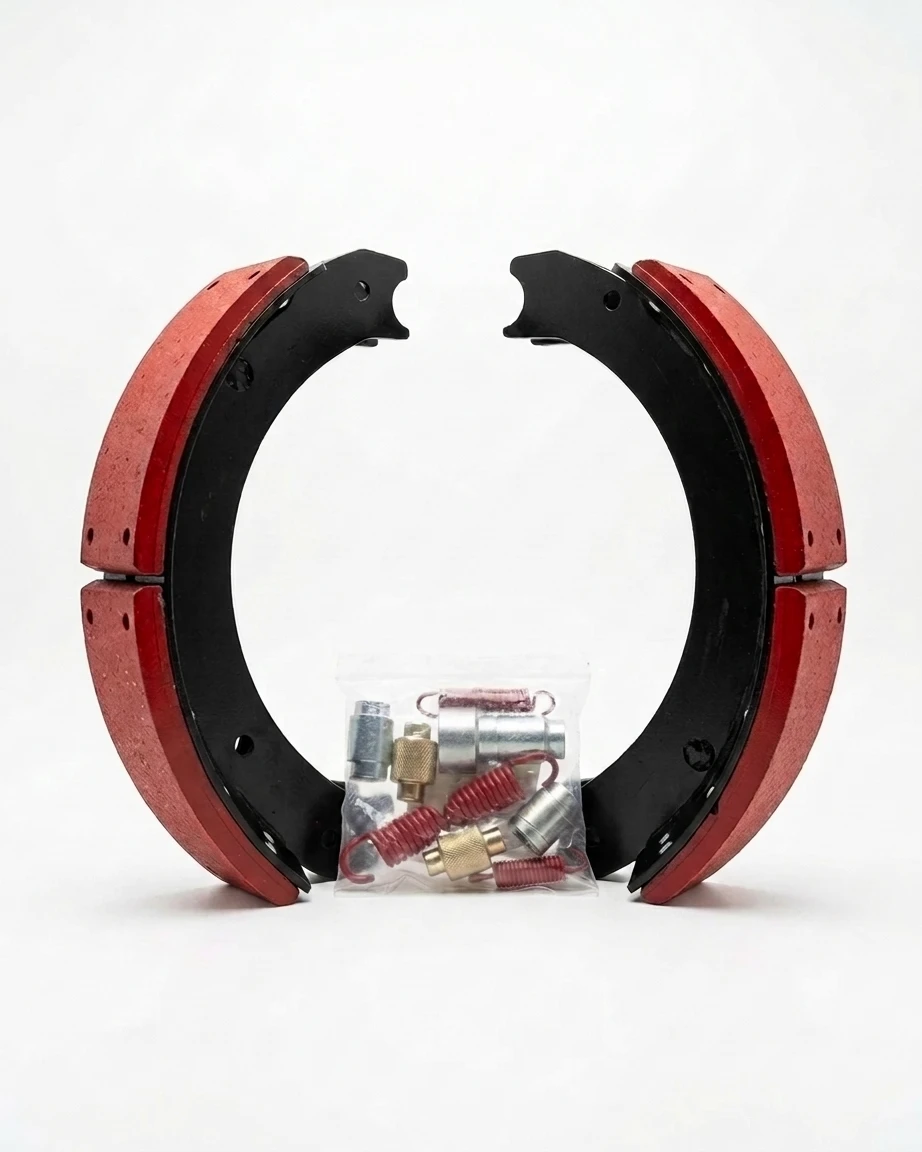

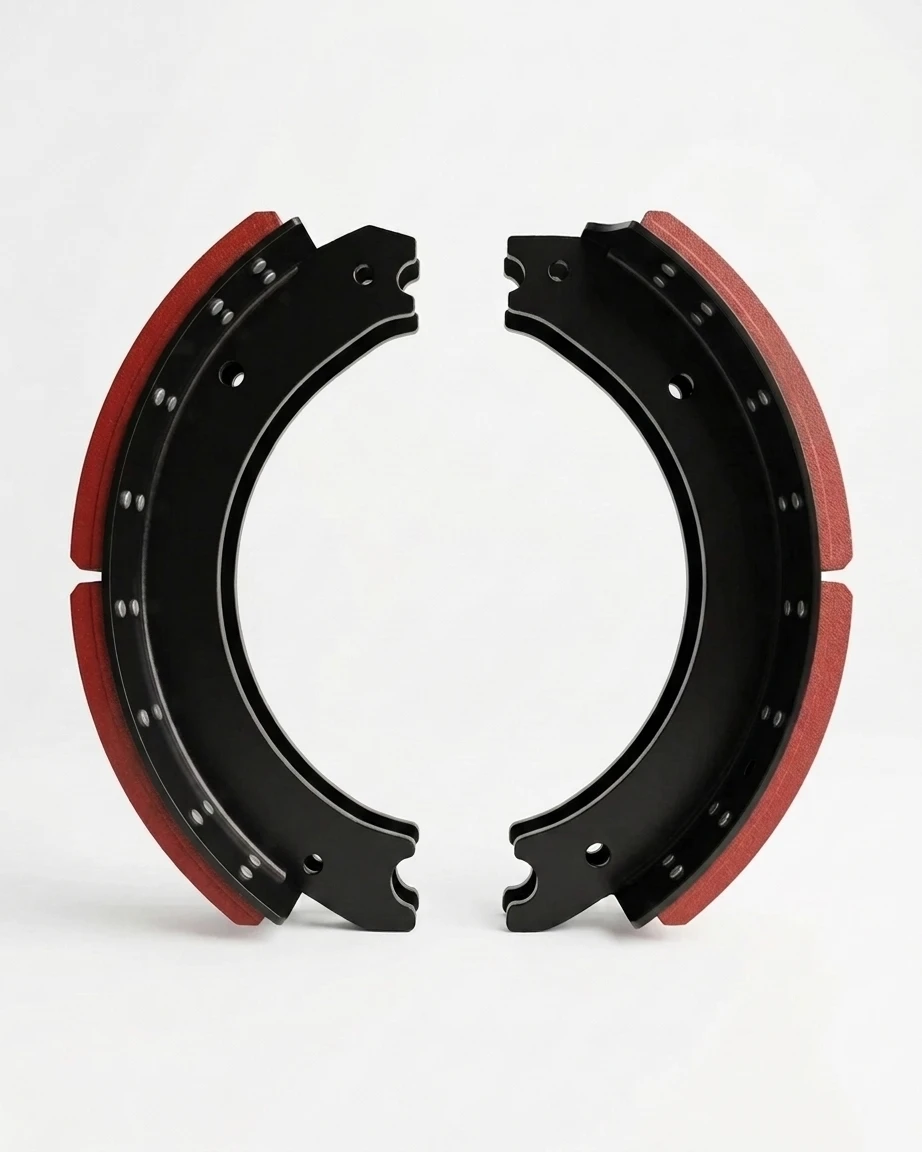

The 4707 Brake Shoe Box Kit is engineered to deliver reliable stopping power, excellent heat resistance, and reduced maintenance downtime on heavy-duty commercial vehicles. Featuring a 16.500″ drum diameter and a 7.000″ shoe width, this complete axle box kit includes two lined double-web brake shoes and a complete heavy-duty hardware kit. In addition, it serves as a direct replacement for Meritor Q Plus, Dana/Spicer, and Hendrickson trailer axle applications. Because each shoe is lined with premium AMF4000 friction material rated for 23,000 lbs GAWR, it prevents premature brake fade under heavy payloads. As a result, your fleet gains dependable braking performance on every long-distance haul.
Cross Reference: 4707,MK4707Q 23PREM, ABPMK4707Q23PREM, EX4707Q23KPREM, GD4707QJ, KE4707Q23KPREM, KSF5
Keep your commercial trucks running safely by installing the 4707 Brake Shoe Box Kit (16.5″ x 7″). Manufactured to strict Fleet Standard specifications, this complete wheel-end kit supplies everything required to service one axle end. Consequently, utilizing pre-assembled lined shoes and fresh hardware guarantees exact anchor pin fitment, eliminates chatter, and restores proper brake return spring tension.
Whether you operate an International ProStar, service a Volvo VNL 670, or manage heavy-duty commercial trailers, this 4707 Brake Shoe Box Kit offers exceptional thermal stability during severe braking cycles. Furthermore, the open anchor and open roller end design ensures fast, hassle-free installation during routine shop maintenance. However, proper installation requires clean, smooth drum contact surfaces. Therefore, we recommend pairing this kit with new drums to protect the fresh friction lining from uneven wear.
In order to maximize the service life of your new 4707 Brake Shoe Box Kit, always inspect your S-cams, camshaft bushings, and automatic slack adjusters during brake replacement. Additionally, replace all return springs and hold-down hardware included in the shoe box kit to ensure uniform shoe retraction. First, clean the brake backing plate and lubrication points thoroughly. Next, install the new anchor pins, rollers, and return springs according to Meritor Q Plus service guidelines. Finally, perform a road test to verify smooth operation without drag or chatter. For more expert tips on choosing friction materials, read our complete guide on how to choose heavy-duty brake shoes.
Focus Part Number: FMSI 4707
Drum Diameter: 16.500 in.
Shoe Width: 7.000 in.
Lining Grade / Rating: AMF4000 / 23K Lbs Fleet Standard
Application Standard: Meritor Q Plus Double Anchor Pin
Kit Contents: (2) Lined Brake Shoes & (1) Complete Heavy-Duty Hardware Kit

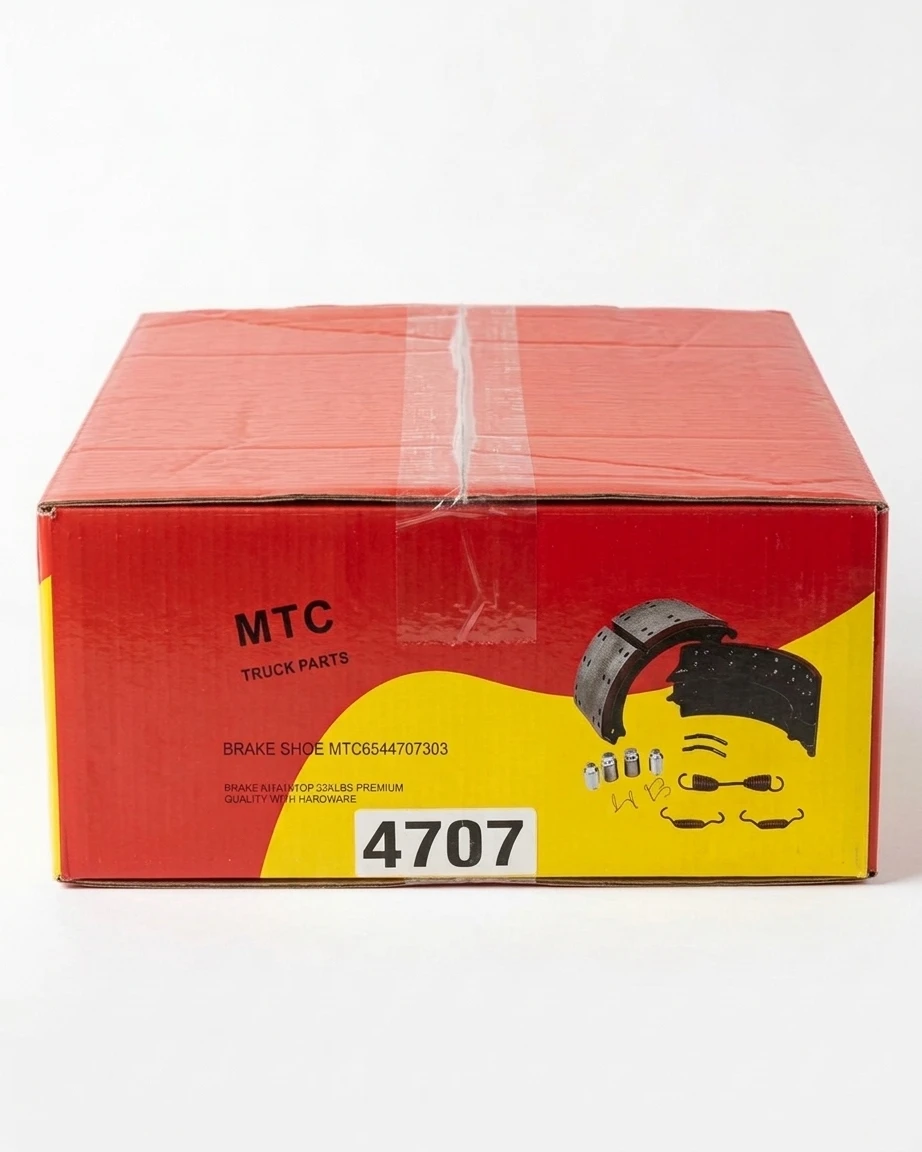

Package Weight: 39.85 lbs (Parcel Friendly)
Package Dimensions: 15.25″ x 13.5″ x 7.5″
Besides universal Meritor Q Plus drive and trailer axle setups, this heavy-duty brake shoe kit fits a wide range of commercial vehicles. Specifically, you can cross-reference the following alternate part numbers and vehicle applications:
| Category | Application / Alternate Part Number |
| Primary FMSI Number | 4707 (Q Plus Series) |
| Truck Fitment | International ProStar, Volvo/White VNL 670 Gen 1 & Gen 2 |
| Trailer Fitment | Hendrickson Intraax 16.5″ x 7″, Dana Spicer XL II |
| Alternate Numbers | HV884707QG, L4707-QK1HD, L4707-QK2SHD, NKFLOE4707Q |
| Alternate MPN | 1444707804022 |
Moreover, if you are completing a complete brake system overhaul, browse our full line of Disc Pads and Brake Shoes or check commercial fleet safety compliance standards set by the Federal Motor Carrier Safety Administration (FMCSA).
| Weight | 39.85 lbs |
|---|---|
| Dimensions | 15.25 × 15.25 × 7.5 in |
